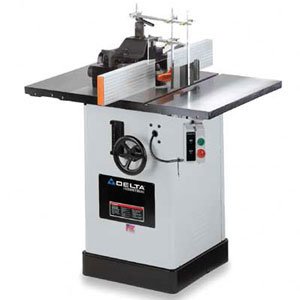

DELTA 43-460 1-1/4-Inch Solid Spindle 5 Horsepower Shaper with Micro Adjust Fence, 200/230/460-Volt 3 Phase |  | Brand: Delta
This item is no longer available
Media: Tools & Home Improvement
Shipping Weight (lbs): 473.5
Dimensions (in): 47 x 46 x 40
MPN: 43-460
Model: 43-460
UPC: 069554434600
EAN: 0069554434600
| |
| Features:
| • | Powerful 5 HP motor | | • | Precision milled 3/8-x-3/4-inch T-slot | | • | Spindle, housing, motor, raising and lowering mechanism are in a single self-contained unit | | • | Table measures 34 inches tall; weighs 456 pounds | | • | Includes 5HP, 3-phase, 200-230/460V motor, motor pulley, V-belt drive, 2 10-inch cast-iron extension wings, micro-adjust fence and guard assembly, 1-1/4-inch spindle, table inserts, starting pin, 2-speed spindle pulley, wrenches |
|
| Accessories:
| |
| Editorial Reviews:
Amazon.com Product Description
The DELTA 43-460 1-1/4-inch 5 HP Solid Spindle Shaper's spindle, housing, motor, and raising and lowering mechanism are in a single self-contained unit, which is securely assembled to the underside of the table for absolute 90-degree spindle-to-table alignment. Its rugged drive spindle assembly and permanently lubricated ball bearings are preloaded to prevent distortion at high speeds to assure accurate, chatter-free shaping. A massive 40-x-27-inch table (with standard cast-iron extension wings) provides extra support for shaping large work. Other features include a precision-ground face and ribbed under table construction to prevent warping. Also included is a precision milled 3/8-x-3/4-inch T-slot, a miter slot to accommodate a miter gauge, a sliding miter jig, and other accessories for holding the workpiece. Conveniently grouped controls are at the front of the machine within easy reach of the operator from a normal working position and deep-tapered spindle design for easy changing of accessory spindles from 1/2-to-1-1/4-inch to permit use of a wide variety of shaper cutters. The table opening size can be varied, as needed, by removing special table insert rings. With a table height of 34 inches, this shaper weighs 456 pounds. This shaper includes a 5 HP, 3-phase, tri-voltage (200-230/460) motor with LVC switch, a motor pulley, a poly V belt drive, two 10-inch cast-iron extension wings, a micro-adjust fence and guard assembly, 1-1/4-inch spindle, table inserts, a starting pin, a two-speed spindle pulley, and wrenches.
|
| |
|
|
|
