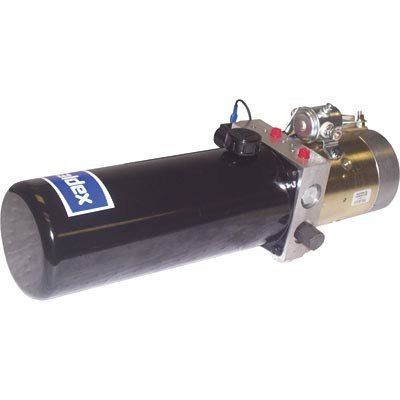

Haldex 12 Volt DC Hydraulic Power Unit, Model# 1510027 |  | Brand: Haldex
Buy New: $499.99
as of 5/25/2012 03:17 CDT details
Seller: Northern Tool & Equipment
Media: Misc.
Shipping Weight (lbs): 0.3
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | Operation: Solenoid w/Remote Cord Set |
| |
| Editorial Reviews:
Product Description
Use in applications where control valves are mounted externally away from power units. Flow and pressure to manifolds allow usage in many applications. Return port for returning oil back to tank. Check and relief valve. 1/4in.-18 SAE ports. Items 1076 and 1077 are for double acting cylinders; others are for single acting cylinders. U.S.A. Displacement (cc): 2.11, Displacement (cu. in.): .129, Flow (GPM): 1.4 at 1,600 PSI, Reservoir Capacity: 3 qt., Inlet Port (in.): 1/4 18 SAE, Outlet Port (in.): 1/4 18 SAE, HP: 1.7, Max. PSI: 3,000, Volts: 12, Max. RPM: 2,750
|
| |
|
|
|
