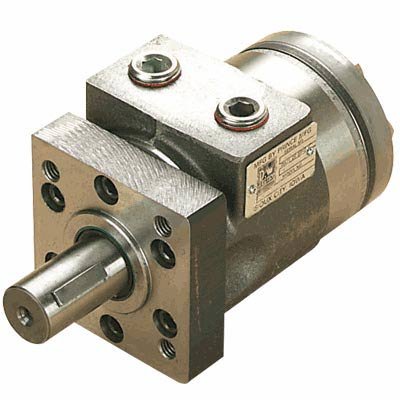

Prince Heavy-Duty Hydraulic Motor - 14 GPM, 1300 PSI |  | Brand: Prince
This item is no longer available
Media: Misc.
Shipping Weight (lbs): 0.2
| | |
| Editorial Reviews:
Product Description
For light and medium duty applications. Replacement for Charlynn H, White HS, and Ross TRW MG series. Maximum inlet pressure is 2500 PSI and maximum back pressure is 1000 PSI. Fully reversible, 4-bolt mount with 1in. x 1 3/4in. shaft with 1/4in. keyway. 1/2in. NPTF ports. Orbiting Gerotor Principle. Mounting Type: 4-bolt, Shaft Dimensions Diameter x L (in.): 1 x 1 3/4, Port Size (in.): 1/2 NPTF, Displacement (cu. in.): 24.4, Max. RPM: 160, Max. PSI: 1,300, Max. Torque (in.-lbs.): 3,392, Max. Flow (GPM): 14
|
| |
|
|
|
